ECHO PB-9510H Hip-Control Backpack Gas Leaf Blower review

The ECHO PB-9510H is the hip-throttle version of the PB-9510 backpack blower. Its engine and published air-output figures are shared with the PB-9510T; the meaningful buying distinction is where the variable-speed control is placed. ECHO’s manual also makes a small but real weight difference explicit: the H is 28.2 lb dry with pipes, versus 27.8 lb for the T. This is a large, gasoline-powered machine, so the control preference should be weighed alongside fuel, noise, mass and the work that actually needs this much output.

Start with the hip control, not the headline output

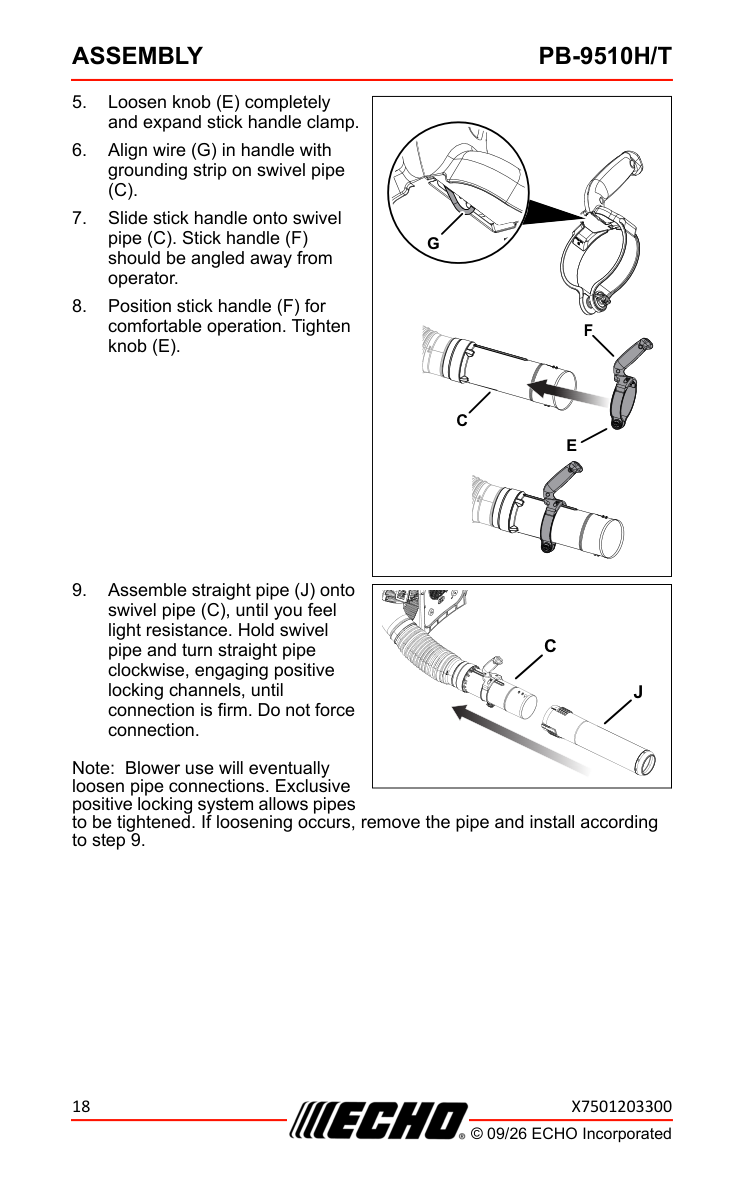

ECHO identifies PB-9510H as the hip-mounted-throttle option and PB-9510T as the tube-mounted option. The shared September 2026 operator manual shows different H and T handle/control assemblies. The H therefore is not a color or package suffix, and the T’s tube-trigger picture should not be used to identify an H. The H-specific parts catalog and the manual’s H column provide separate confirmation of the configuration.

Choose the H when you specifically want its control position. The distinction is about the location and layout of the control; ECHO does not publish a separate H engine or a higher H output. Try the harness, tube reach and control movement in a safe, stationary setup if possible. A hip control may suit one operator’s preferred hand position, while another may prefer to set speed at the tube. Neither preference can be inferred from CFM or engine size, and the choice does not make this backpack lighter or easier to maintain.

Its airflow figures describe a high-output gas backpack

The PB-9510H shares the family’s 79.9 cc two-stroke engine. The H/T operator manual lists 33.98 cubic metres per minute of air volume and 230 mph with pipes; ECHO’s product family page rounds the volume to 1,200 CFM. Those are published maximums, not a measured clearing-time promise. Wet leaves, compacted piles, turf, gravel and how the operator directs the stream can change the practical job. ECHO’s manual recommends reducing speed for dry leaves on walks and using a rake or broom to loosen stubborn debris rather than treating maximum throttle as the only useful setting.

The same page advertises 56 N at the nozzle, but the reviewed operator manual does not list a force value. I would not use that page-only number to satisfy a requirement for manual-confirmed blowing force. If a hard force threshold matters, this is not a verified match on the available manual data. Likewise, the large CFM and MPH numbers do not establish that the PB-9510H is appropriate for a small yard or sensitive planting beds.

Use the H-specific weight, not the family’s T figure

The manual gives the PB-9510H a dry weight of 12.8 kg (28.2 lb) with pipes. The family page’s generic 27.8 lb figure matches the T column; it should not replace the H-specific manual value. A strict 28.0 lb pre-fuel ceiling therefore rules out the H, while a 28.2 lb dry ceiling includes its published specification exactly. Neither number is a ready-to-work weight: the manual does not give an operating mass with a full tank, and fuel adds load. Test the pack and harness in person if carrying mass is important.

Gas ownership is part of the operating plan

This model uses a recoil starter and a 50:1 gasoline/two-stroke-oil mix. The manual calls for 89-octane unleaded fuel and excludes E-15 and E-85; it also sets limits on methanol and other fuel blends. Its 2.96 L (100.1 US fl oz) tank is a capacity, not a runtime estimate. Plan for correct mixing, fuel storage and ordinary engine care, including the filter, cooling passages and spark-arrester system. If you need battery power, a battery backpack such as an EGO LB6000-series package changes the fuel and start-up routine, but it is not a like-for-like 1,200 CFM substitute.

ECHO’s manual reports 81.7 dB(A) at 50 feet under ANSI B175.2. That standardized distance figure is not sound measured at the operator’s ear. The manual calls for eye, hearing and head protection, a 50-foot bystander separation, and outdoor use only; it warns against operation below 15°F (-9°C) because fuel-line damage may occur. Those requirements matter on a residential property as much as on a large grounds-maintenance route.

Who should consider the PB-9510H

Keep it on the list if a gas backpack and the PB-9510’s published maximum airflow fit recurring heavy cleanup, and the hip-mounted throttle is a deliberate requirement. The PB-9510T shares the power system and manual-listed air figures but puts its trigger and throttle-position lever on the tube; the H is 0.4 lb heavier dry with pipes. If the control position is flexible, compare both while wearing the harness instead of assuming the H clears debris better. If the real need is easy storage, quieter operation, battery power, a handheld weight or vacuum-and-bag collection, a different category is a better starting point.

ECHO’s U.S. PB-9510 family page lists both H and T control options and states five-year consumer/two-year commercial warranty terms. Its launch announcement described planned U.S. dealer and Home Depot availability, not local inventory. A manufacturer press photo shows the PB-9510 family but does not identify which throttle control is pictured; it cannot distinguish H from T. Confirm the exact PB-9510H model code and the seller’s terms rather than using a family image as proof of the configuration.

ECHO PB-9510 family page (lists H and T options) · ECHO PB-9510H/T operator manual · PB-9510H parts catalog · Compare PB-9510H and PB-9510T
